Unique medical solutions

Haemodynamic monitoring

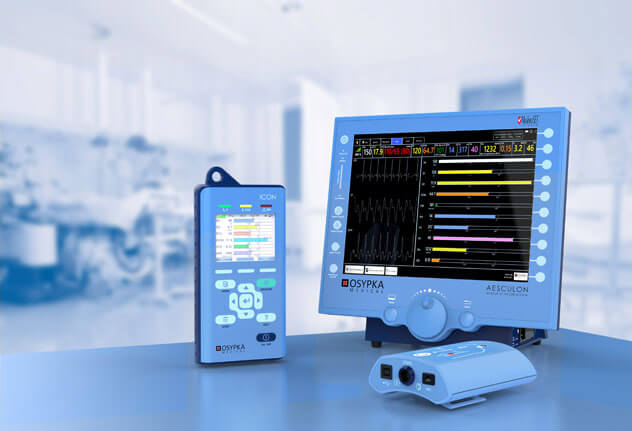

Electrical Cardiometry™ — ICON® and ICONCORE®

Non-invasive haemodynamics for continuous monitoring of the cardiovascular system.

Four skin sensors read how the conductivity of blood in the aorta changes with every beat. From that, Osypka Medical's Electrical Cardiometry™ derives stroke volume, cardiac output, contractility, vascular resistance and thoracic fluid status within seconds, with no catheter, from premature babies to adults.

• ICON® — a hand-held, battery-powered cardiometer with a 3.5″ colour screen and about two hours of battery, for spot checks on rounds or continuous monitoring. FDA 510(k) cleared (K082242) and CE marked.
• ICONCORE® — a compact module run by iControl™ software on a Windows PC, laptop or tablet, with at least four hours of battery, an HL7 link to the patient data management system, a guided passive leg raise test and side-by-side PDF reports. CE marked.
• What it measures — blood flow (SV/SI, CO/CI, HR), vascular resistance (SVR/SVRI), contractility (ICON™, VIC™, STR, CPI), fluid status (TFC, SVV, FTc) and oxygen delivery (DO₂/DO₂I, with haemoglobin and SpO₂ entered).
• iSense® sensors — four adhesive skin sensors in premature/neonatal, paediatric and adult sizes. No line placement.
• Clinical evidence — compared with thermodilution, Fick and echocardiography in close to 200 studies listed by Osypka Medical since 2005; strongest for trends and responses to treatment.

New to haemodynamic monitoring? Learn to read these numbers, free, at the Nassef Academy with Dr. Yasser Nassef.

Cardiac pacing

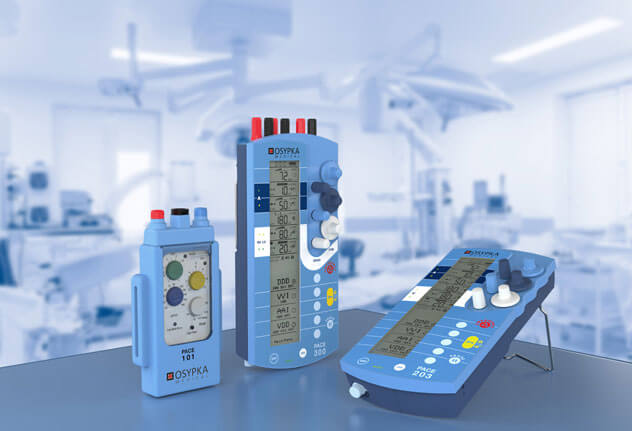

Temporary cardiac pacing

External cardiac pacemakers for temporary pacing therapy and assessment of intrinsic heart rhythm.

• PACE® Model 101 — single chamber (SSI), built for transvenous pacing in the emergency room or intensive care unit. Available in unipolar or bipolar terminal styles, it has earned its reputation as one of the most trusted temporary pacemakers.
• PACE® Model 203 — dual chamber (DDD), designed with cardiac surgery pacing and the operator in mind. Intrinsic P/R wave amplitudes are measured at the press of a button, and impedance measurement checks the quality of extension cables and pacing leads.
• PACE® Model 300 — three chamber (DDD-BV), the world's first commercially available temporary biventricular pacemaker. Individually programmable AV and VV delays support customised pacing, including cardiac resynchronisation therapy (CRT).

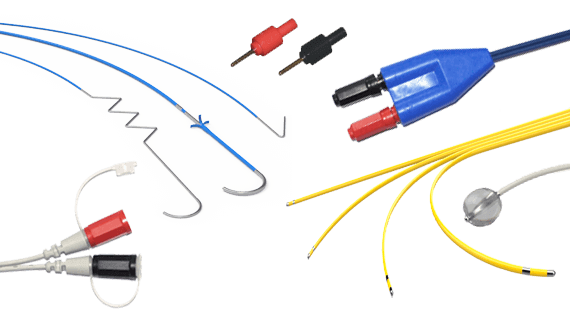

Leads & disposables

Temporary myocardial electrodes, pacing leads & extension cables

HeartWires, pacing catheters and extension cables in a wide range.

We offer a comprehensive range designed to meet diverse clinical needs with precision and reliability. High-quality products ensure optimal performance, enhancing patient care and procedural efficiency. Whether you require durable, reusable solutions or specialised disposable options, we provide tailored choices to support your practice.

• MyoStim® HeartWires — temporary myocardial pacing wires, unipolar, bipolar or quadripolar, for adults, children and neonates.
• EndoStim® pacing catheters — temporary transvenous pacing catheters.
• StimConnect® cables and EasyStim™ adapters — reusable and disposable extension cables for external pacemakers.
• EP diagnostic leads
• PSA pacing cables
• Introducers

Clinical training

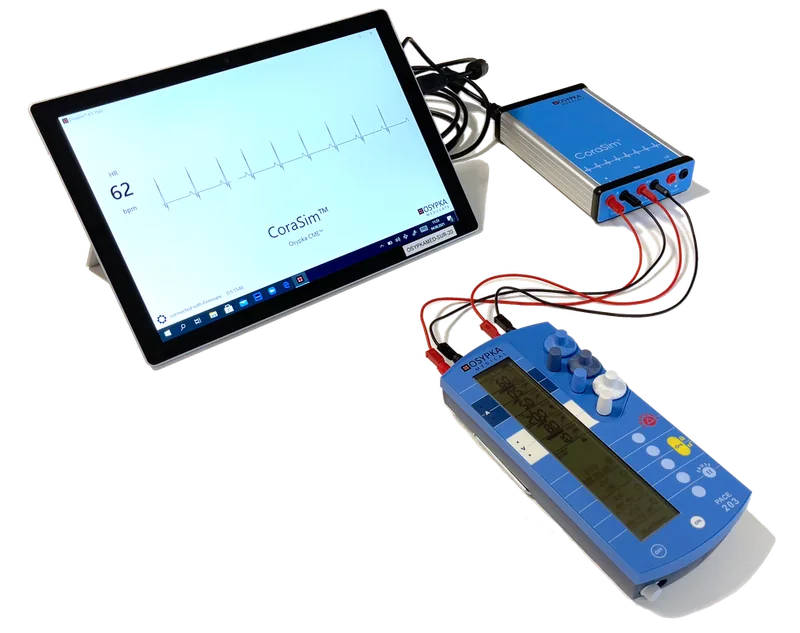

CoraSim®

Interactive electrical heart simulator.

CoraSim® enables genuine practical training with external temporary pacemakers. The user can become familiar with every pacemaker function hands-on, without endangering a patient.

• Device unit plus software — a microprocessor-controlled interface and the CoraSim® software for Windows computers, connected over USB.
• Single and dual chamber support — common temporary external pacemakers connect to the A (atrium) and V (ventricle) input sockets.
• Configurable scenarios — a wide variety of heart rhythm scenarios, including rapid pacing for TAVI, with heart rate, signal amplitudes and capture thresholds adjustable on the fly.
• Detailed analysis — the ECG can be paused and graph paper displayed to measure time intervals with calipers.
• Simple workstation — a Windows PC plus CoraSim® is all a clinic needs to give staff independent access to pacemaker training.

Neonatal care

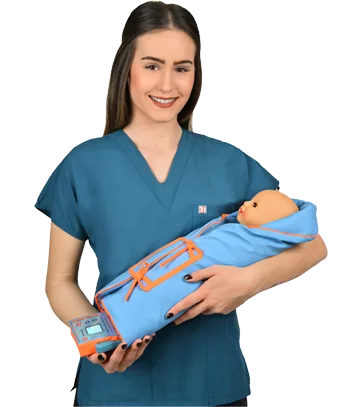

PreThermo

Newborn mobile swaddling blanket with an integrated heating system.

PreThermo is designed to prevent the development of hypothermia in infants. The patient warming system combines carbon fibre technology with microprocessor control, wrapping the whole body of the baby in a structure equipped with a sensitive sensor system to provide a comfortable and safe heating environment.

• 3–15 minutes to reach the set temperature.
• 0.1 °C adjustment up to 39 °C.
• Skin probe monitoring of body temperature.
• Up to 4 hours of battery-powered mobile use during patient transfers.

Used in neonatal intensive care departments and maternity wards, the system stabilises or raises the peripheral temperature of neonates at risk of hypothermia.

Renal / CRRT

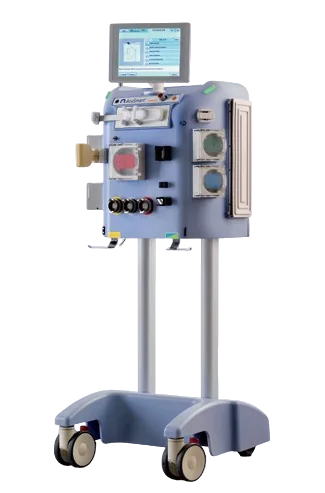

AcuSmart®

Continuous renal replacement therapy, managed simply.

AcuSmart® integrates the most modern technologies available to let operators manage the treatment in a simple and immediate way.

• Five peristaltic pumps.
• Heparin and citrate both supported as anticoagulants.
• Advanced balance control — an automatic monitoring and control system ensures a balance error of 25 g is not exceeded, safeguarding the patient from the fluid balance inaccuracy that strongly influences CRRT outcomes.
